Snow Joe SJ618E Electric Snow Blower Operator’s Manual

Description

This PDF instruction manual is for the Snow Joe SJ618E Electric Snow Blower.

About the Item

Snow Joe SJ618E Electric Walk-Behind Single-Stage Snow Blower (18-inch 13-amp)

Responding to the need for an easy-to-use machine that could tackle heavier snowfall on mid-sized driveways and walkways, Snow Joe developed the Snow Joe Ultra SJ618E, a larger electric snow thrower that delivers the power of a gas machine with the convenience of an electric unit. Driven by a powerful 13-amp motor, the Snow Joe Ultra moves up to 580 lbs of snow per minute. Its durable, 2-blade cold-and-abrasion-resistant rotor cuts a swath 18 inches wide by 8 inches deep with each pass.
In addition to its hard-working plowing capacity, the Snow Joe Ultra features an adjustable discharge chute that rotates a complete 180 deg to provide full control over the direction of the snow stream. The chute deflector can also be adjusted to control the height of the snow stream. Easy-glide all-terrain wheels make the Snow Joe Ultra easy to turn and maneuver with each pass. The scraper blade at the base of the unit efficiently scrapes the snow clear to the ground without damaging your deck or pavement.
Powered electrically, the Snow Joe Ultra SJ618E is effortless to start and maintain. No gas, oil, or tune-ups are necessary. The unit is ETL-approved. For heavier snowfall on mid-sized driveways and walkways, the Snow Joe Ultra SJ618E is your snow solution this winter.

– Ideal for quick snow pickups on mid-sized driveways and walkways
– No gas, oil or tune-ups make it effortless to start and maintain
– Powerful 13-amp motor
– 2-blade cold-and-abrasion-resistant plastic auger cuts 18 in. wide by 8 in. deep with each pass
– 180 deg adjustable directional chute throws snow up to 20 ft
– Compact wheels for easy maneuverability
– ETL approved

TECHNICAL SPECS
– Amperage (amps): 13
– Assembled Depth (in.): 39.8
– Assembled Height (in.): 38.6
– Assembled Width (in.): 19.5
– Assembly: Required Some
– Best Use: Quick Pick ups, Mid Size Clearing
– Brand: Snow Joe
– Certifications and Listings: ETL
– Chute Rotation Turning Radius (Deg): 180
– Clearing Surface Type: Paved
– Clearing Tool: Included No
– Clearing Width (in.): 18
– Cord Lock: Yes
– Decibels (dB): 98
– Depth of Snow Cut (in.): 8
– Drive System: Auger Assisted
– Features: Electric, 13-Amp motor, 2 Blade Auger, 20 ft Throw Distance
– Headlight: No
– Heated Handles: No
– Included: Safety Switch, Ergonomic Grip
– Intake Height (in.): 8
– Maximum Extension Cord Length (ft.): 100
– Minimum Extension Gauge (100ft.): 12
– Minimum Extension Gauge (25ft.): 14
– Minimum Extension Gauge (50ft.): 14
– Net Weight (lb.): 25.8
– Power Source: Electric
– Power Type: Electric
– Product Type: Snow Blower
– Rust Resistant: Yes
– Snow Blower Type: Electric
– Snow Blower Usage: Light-to-Medium
– Snow Equipment Product Type: Single Stage Corded Electric
– Start Type: Electric
– Terrain: Flat with Obstacles
– Throw Distance (ft.): 20
– Tire Height (in.): 6.3
– Tire Width (in.): 1.6
– Type of Snow: Light, Fluffy
– UPC: 810829023698

Read, understand, and follow all instructions in the user manual before attempting to assemble and operate. Keep this manual for future reference.

DOCUMENT(S) AVAILABLE

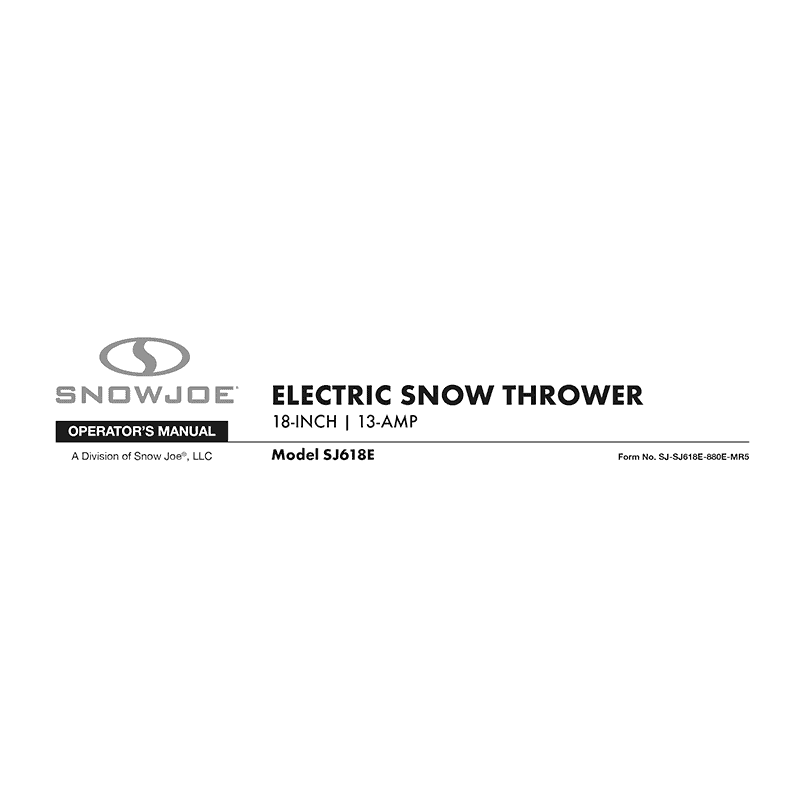

(PDF) OPERATOR’S MANUAL / MANUAL DEL OPERADOR / MANUEL D’UTILISATION

Available Languages

ENGLISH (EN) | ESPAÑOL (ES) | FRANÇAIS (FR)

SUMMARY OF CONTENTS

SAFETY INSTRUCTIONS
– General Safety Warnings
– Electrical Safety
– Extension Cord Chart. Method of Securing Extension Cord
– Personal Safety
– Safety Instructions for Walk-Behind Snow Throwers
– Safety Symbols

KNOW YOUR ELECTRIC SNOW THROWER
– Names of parts
– Technical Data

UNPACKING
– What’s in the box

ASSEMBLY
– Upper, Middle and Lower Frame Assembly
– Chute Crank Assembly
– Discharge Chute Assembly

OPERATION
– Securing the Extension Cord
– Powering On and Off
– Moving the Machine and Plowing the Snow
– For larger areas, a definite pattern of operation is required to thoroughly clean an area of snow. These patterns will avoid throwing snow in unwanted places, a well as eliminate the need for a second removal of snow.
– Changing Throw Direction and Throw Height

MAINTENANCE
– Lifetime Lubrication (Motor and Auger)
– General Maintenance Tips
– Replacing the Plastic Auger
– Replacing the Scraper Bar
– Replacing the Belt

STORAGE

SERVICE AND SUPPORT

MODEL AND SERIAL NUMBERS

OPTIONAL ACCESSORIES

CUSTOMER PROMISE
– Warranty
– Product Registration
– Who Can Seek Limited Warranty Coverage
– What Is Not Covered

Why download the Manual?

This instruction manual provides all the information from Snow Joe about the SJ618E electric snow blower, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
