SRF04 Devantech Ultra-Sonic Ranger Technical Specification

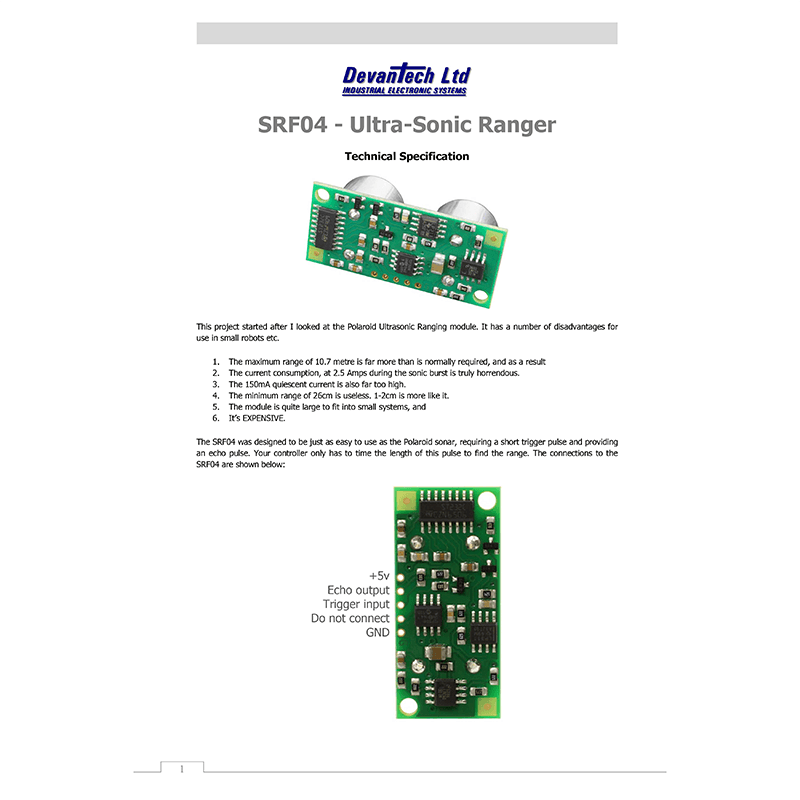

Download PDF datasheet for Devantech SRF04 Ultra-Sonic Range Finder (EN) 4 pages zip
Description
This PDF datasheet is for the Devantech SRF04 ultra-sonic range finder.
About the Item
Devantech SRF04 Ultra-Sonic Range Finder
The SRF04 was designed to be just as easy to use as the Polaroid sonar, requiring a short trigger pulse and providing an echo pulse. Your controller only has to time the length of this pulse to find the range. By timing the pulse it is possible to calculate the range in inches / centimeters or anything else.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– SRF04 board pinout
– SRF04 timing diagram
– SRF04 Sonic Range Finder Schematic and its description
– Distance Calculation
– Changing beam pattern and beam width
– Circuit improvements
Why download the Datasheet?
This datasheet provides all the information from Devantech Industrial Electronic Systems about the SRF04 Ultra-Sonic Range Finder, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
