STN8205A Stanson 5A Dual N Channel MOSFET Data Sheet

Download PDF datasheet for Stanson Technology STN8205A 5.0A Dual N Channel Enhancement Mode MOSFET (EN) 7 pages v1 2007 zip

SKU: STANSONSTN8205ADS2007V1 Category: Brand:

Description

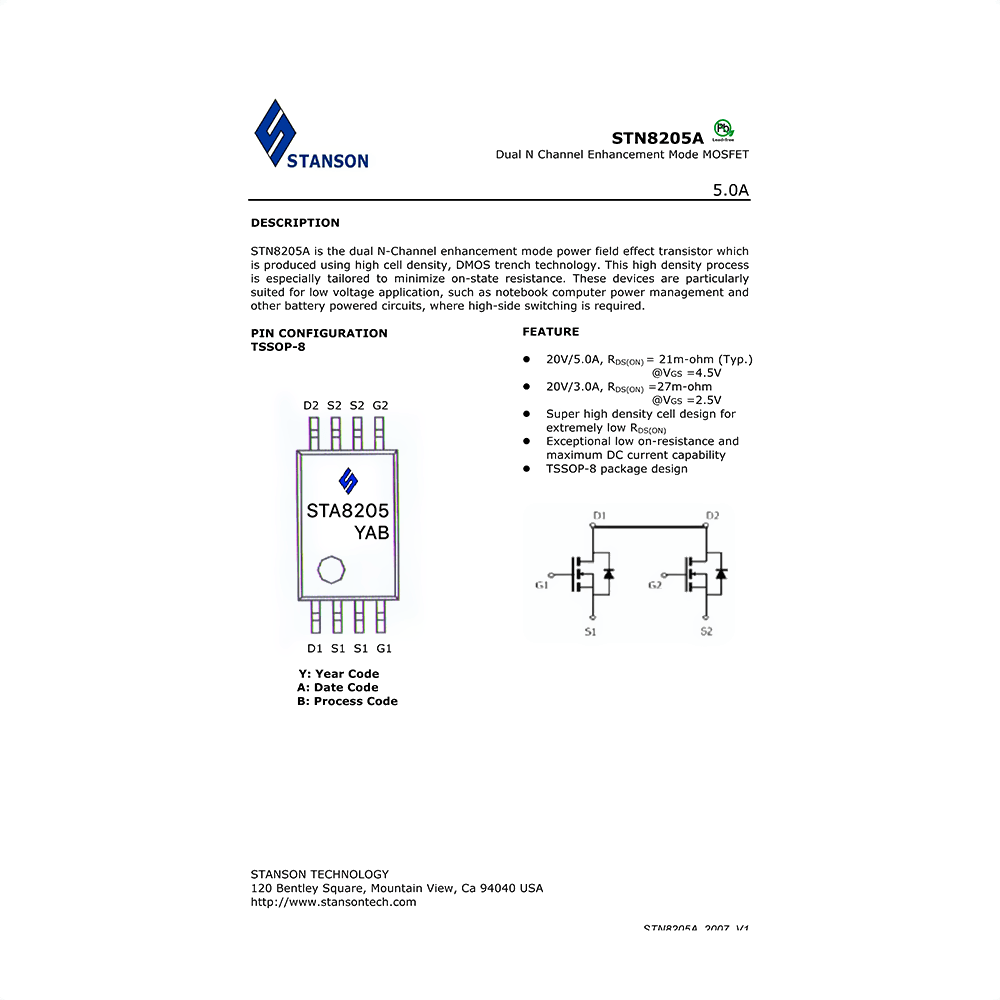

This PDF data sheet is for the Stanson STN8205A Dual N-Channel MOSFET.

About the Item

Stanson STN8205A 5.0A Dual N Channel Enhancement Mode MOSFET

STN8205A is the dual N-Channel enhancement mode power field effect transistor which is produced using high cell density, DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application, such as notebook computer power management and other battery powered circuits, where high-side switching is required.

(PDF) DATASHEET (ENGLISH)

SUMMARY OF CONTENTS

PIN CONFIGURATION (PINOUT)

FEATURES

ABSOULTE MAXIMUM RATINGS

ELECTRICAL CHARACTERISTICS
– Static
– Dynamic

TYPICAL CHARACTERICTICS

PACKAGE OUTLINE

Why download the Datasheet?

This data sheet provides all the information from Stanson about the STN8205A Dual N-Channel MOSFET, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

How to download the Datasheet?

Download it by clicking the button below
