TIP127 onsemi 5A 100V PNP Darlington Transistor Data Sheet

Download PDF datasheet for onsemi TIP127 5A 100V PNP Darlington Transistor (EN) 8 pages TIP120/D Rev.9 2014 zip

SKU: ONSEMITIP127DS2014 Category: Brand:

Description

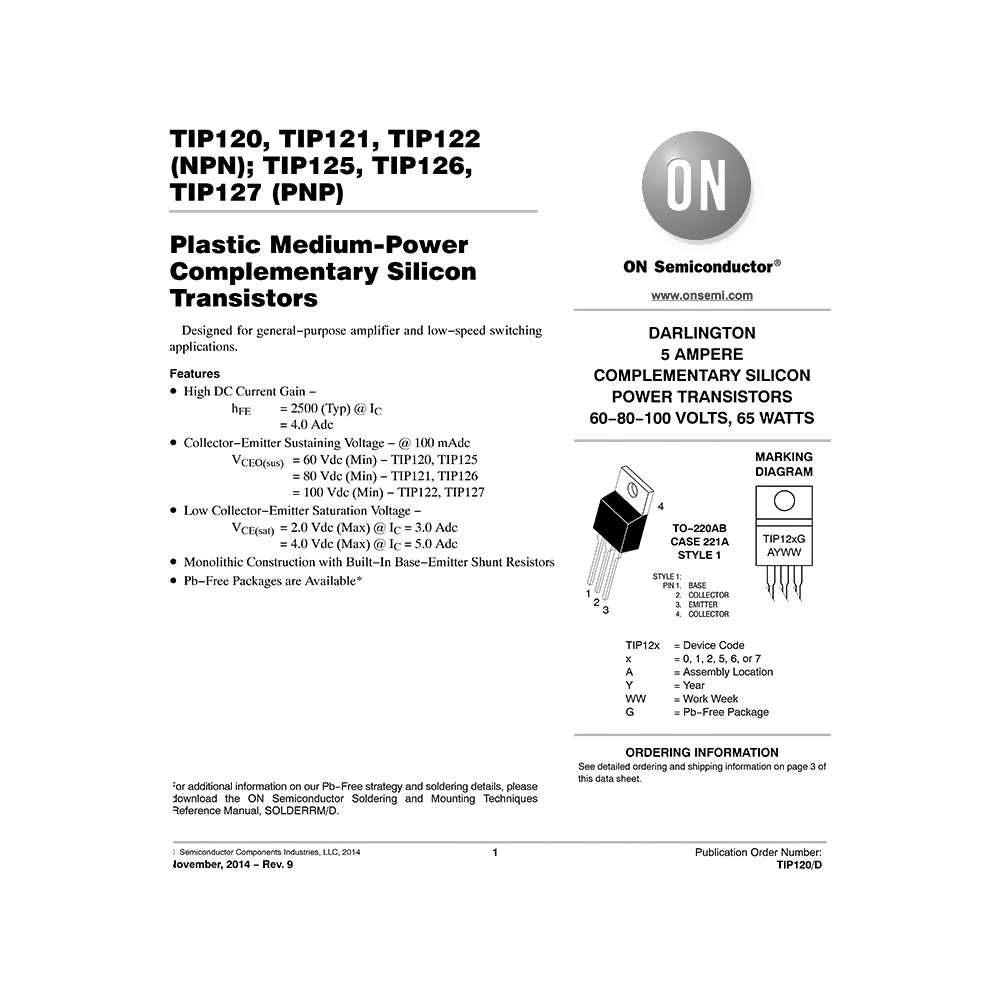

This PDF datasheet is for the onsemi TIP127 transistor.

onsemi TIP127 5A 100V PNP Darlington Transistor

Designed for general-purpose amplifier and low-speed switching applications.

(PDF) DATASHEET (ENGLISH)

CONTENTS

– Features
– TIP127 pinout
– Maximum Collector-Emitter Voltage
– Maximum Collector-Base Voltage
– Maximum Emitter-Base Voltage
– Maximum Collector Current
– Maximum Base Current
– Maximum Total Power Dissipation
– Maximum Unclamped Inductive Load Energy
– Maximum Operating and Storage Junction Temperature
– Thermal Characteristics
– Electrical Characteristics
– Ordering Information
– Mechanical Case Outline – Package Dimensions

Figure 1. Darlington Circuit Schematic
Figure 2. Power Derating
Figure 3. Switching Times Test Circuit
Figure 4. Switching Times
Figure 5. Thermal Response
Figure 6. Active-Region Safe Operating Area
Figure 7. Small-Signal Current Gain
Figure 8. Capacitance
Figure 9. DC Current Gain
Figure 10. Collector Saturation Region
Figure 11. “On” Voltages

Why download the Datasheet?

This datasheet provides all the information from onsemi about the TIP127 transistor, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

How to download the Datasheet?

Download it by clicking the button below
