TL081A ST Operational Amplifier Data Sheet

Download PDF datasheet for ST TL081A General Purpose Single J-FET Operational Amplifier (EN) 9 pages 1995 zip

SKU: TL081ASTDS1995 Category: Brand:

Description

This PDF datasheet is for the ST TL081A operational amplifier.

About the Item

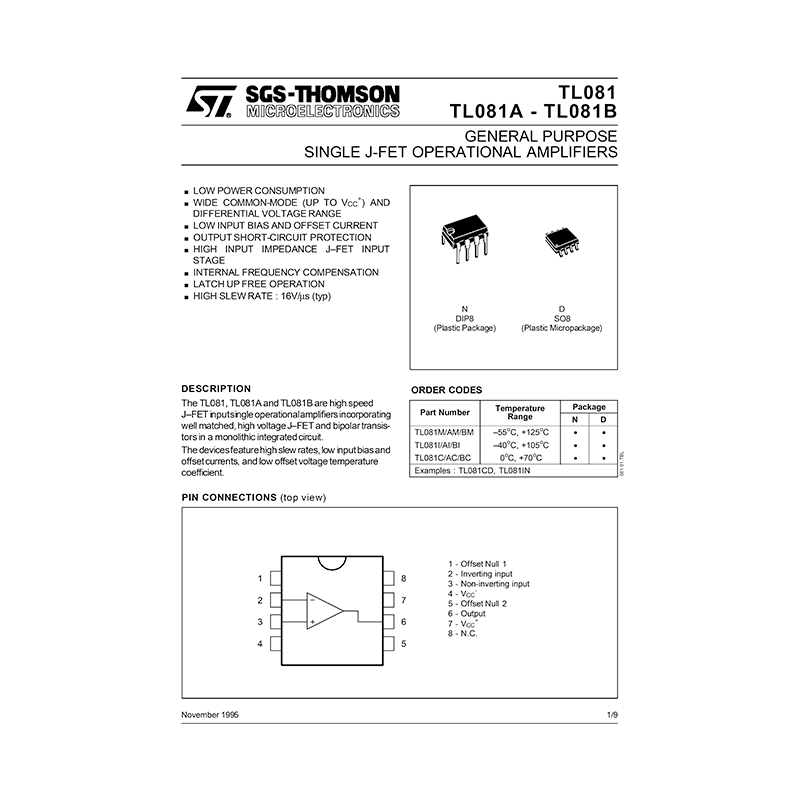

ST TL081A General Purpose Single J-FET Operational Amplifier

TL081AMN, TL081AMD, TL081AIN, TL081AID, TL081ACN, TL081ACD
General Purpose Single J-FET Operational Amplifier

The TL081A is a high speed J-FET input single operational amplifier incorporating well matched, high voltage J-FET and bipolar transistors in a monolithic integrated circuit.
The device features high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.

(PDF) DATASHEET (ENGLISH)

SUMMARY OF CONTENTS

– Description
– Order Codes
– Pin Connections
– Schematic Diagram
– Input Offset Voltage Null Circuits
– Absolute Maximum Ratings
– Electrical Characteristics
– Maximum Peak-To-Peak Output Voltage vs Frequency
– Maximum Peak-To-Peak Output Voltage vs Load Resistance
– Maximum Peak-To-Peak Output Voltage vs Supply Voltage
– Input Bias Current vs Free Air Temperature
– Large Signal Differential Voltage Amplification vs Free Air Temperature
– Large Signal Differential Voltage Amplification And Phase Shift vs Frequency
– Total Power Dissipation vs Free Air Temperature
– Supply Current Per Amplifier vs Free Air Temperature
– Supply Current Per Amplifier vs Supply Voltage
– Parameter Measurement Information
– Typical Applications
– Package Mechanical Data
