TL431A HTC Programmable Shunt Regulator Data Sheet
Download PDF datasheet for TAEJIN Technology HTC TL431A Programmable Precision Shunt Regulator (EN) 15 pages 2001 zip
Description

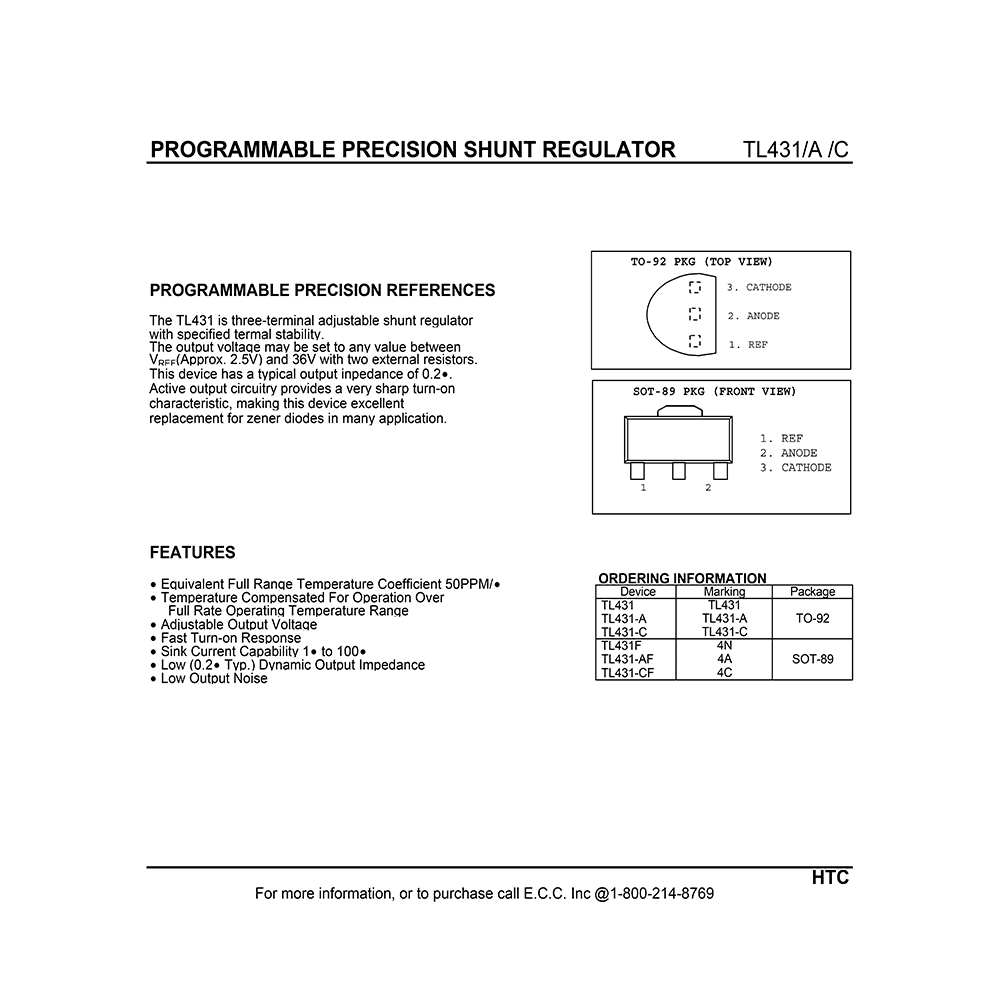

This PDF datasheet is for the HTC Korea TL431A Regulator.
About the Item
HTC Korea TL431A Programmable Precision Shunt Regulator
The TL431 is three-terminal adjustable shunt regulator with specified termal stability.
The output voltage may be set to any value between Vref(Approx. 2.5V) and 36V with two external resistors.
This device has a typical output inpedance.
Active output circuitry provides a very sharp turn-on characteristic, making this device excellent replacement for zener diodes in many application.
FEATURES
– Equivalent Full Range Temperature Coefficient
– Temperature Compensated For Operation Over Full Rate Operating Temperature Range
– Adjustable Output Voltage
– Fast Turn-on Response
– Sink Current Capability
– Low Dynamic Output Impedance
– Low Output Noise
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– FUNCTION BLOCK DIAGRAM
– EQUIVALENT SCHEMATIC
– TL431A PINOUT
– RECOMMENDED OPERATING CONDITIONS
– DISSIPATION RATING TABLE1-FREE-AIR TEMPERATURE
– ABSOLUTE MAXIMUM RATINGS
– ELECTRICAL CHARACTERISTICS
– TYPICAL PERFORMANCE CHARACTERISTICS
– APPLICATION INFORMATION
Why download the Datasheet?
This datasheet provides all the information from HTC Korea about the TL431A Regulator, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
