TC9162 Toshiba High Voltage Analog Function Switch Array Data Sheet
Download PDF datasheet for Toshiba TC9162AN and TC9162AF High Voltage Analog Function Switch Arrays (EN) 12 pages 1998 zip
Description

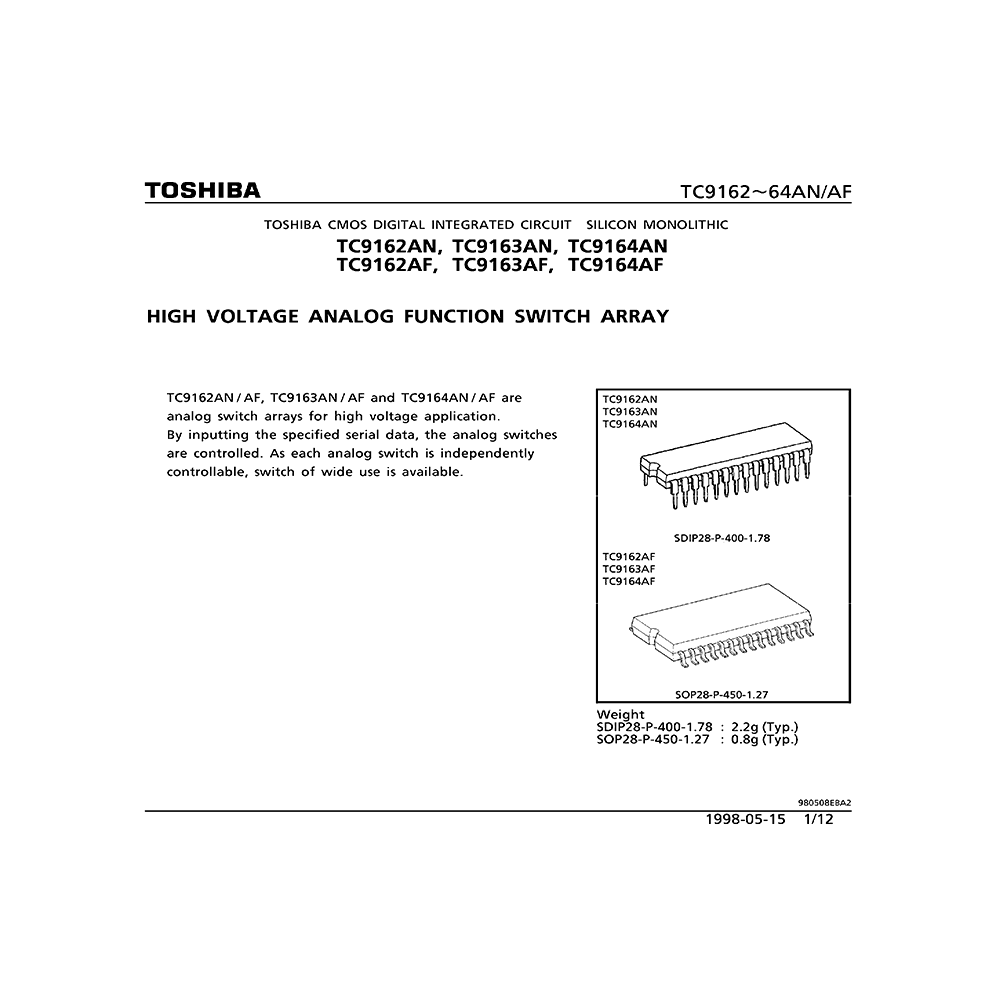

This PDF data sheet is for the Toshiba TC9162AN / TC9162AF High Voltage Analog Function Switch Array.
About the Item
Toshiba TC9162AN / TC9162AF High Voltage Analog Function Switch Array
TC9162AN/AF are analog switch arrays for high voltage application.
By inputting the specified serial data, the analog switches are controlled. As each analog switch is independently controllable, switch of wide use is available.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
– Description
– Features
– Pin connection
– Block diagram
– Description of Pin functions
– Description of operation
– Timing of Data
– Power supply correlations
– Maximum ratings
– Supply voltage
– Input voltage
– Power dissipation
– Operating temperature
– Storage temperature
– Electric Characteristics
– Operating supply voltage
– Operating supply current
– Back-up voltage
– Back-up current
– Input voltage
– Operating Min. Pulse Width
– Switch-on Resistance
– Total Harmonic Distortion
– Noise Voltage
– Application circuit: 1. Back-up circuit; 2. Switch-on Resistance; 3. Total Harmonic Discription; 4. Noise Voltage.
– Application information
– Outline drawing
Why download the Datasheet?
This datasheet provides all the information from Toshiba about the TC9162AN / TC9162AF High Voltage Analog Function Switch Array, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
