TS2937 Taiwan Semiconductor 500mA Ultra Low Dropout Voltage Regulator Data Sheet

Description

This PDF datasheet is for the Taiwan Semiconductor TS2937 voltage regulator.

About the Item

Taiwan Semiconductor TS2937 500mA Ultra Low Dropout Voltage Regulator

TS2937CZ12
TS2937CZ50
TS2937CZ33

TS2937CM12
TS2937CM50
TS2937CM33

TS2937CP12
TS2937CP50
TS2937CP33

TS2937CW12
TS2937CW50
TS2937CW33

TS2937 of fixed-voltage monolithic micro-power voltage regulators is designed for a wide range of applications. This device excellent choice of use in battery-power application. Furthermore, the quiescent current increases on slightly at dropout, which prolongs battery life. This series of fixed-voltage regulators features very low ground current and very low drop output voltage. This includes a tight initial tolerance of 2%, extremely good line regulation of 0.05% typ., and very low output temperature coefficient.

(PDF) DATASHEET (ENGLISH)

SUMMARY OF CONTENTS

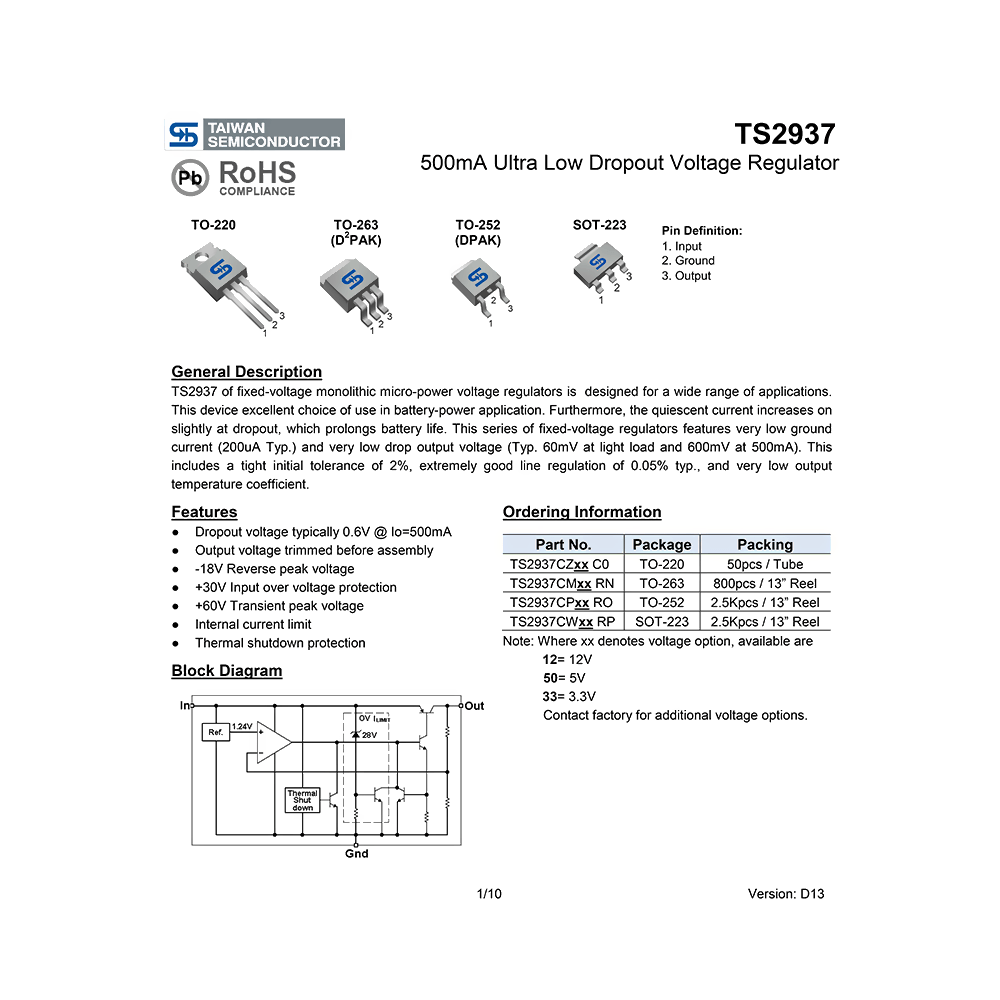

TS2937 Block Diagram

TS2937 Pinout

Absolute Maximum Rating

Electrical Characteristics

Thermal Performance

Application Information

Typical Application Circuit

Output Capacitor

Minimum Load Current

Input Capacitor

Thermal Characteristics

Figure 1 – D2PAK Thermal Resistance and Maximum Power Dissipation vs. P.C.B Copper Length
Figure 2 – DPAK Thermal Resistance and Maximum Power Dissipation vs. P.C.B Copper Length
Figure 3 – SOT-223 Thermal Resistance and Maximum Power Dissipation vs. P.C.B Copper Length
