UF3006M Lite-On Semiconductor 800V 3A Ultra Fast Rectifier Data Sheet

Download PDF datasheet for Lite-On Semiconductor UF3006M 800V 3A Ultra Fast Rectifier (EN) 2 pages rev.2, 01-Dec-2000, KDCF01 zip

SKU: UF3006MLITEONSEMICONDUCTORDS2000 Category: Brand:

Description

This PDF datasheet is for the Lite-On Semiconductor UF3006M rectifier.

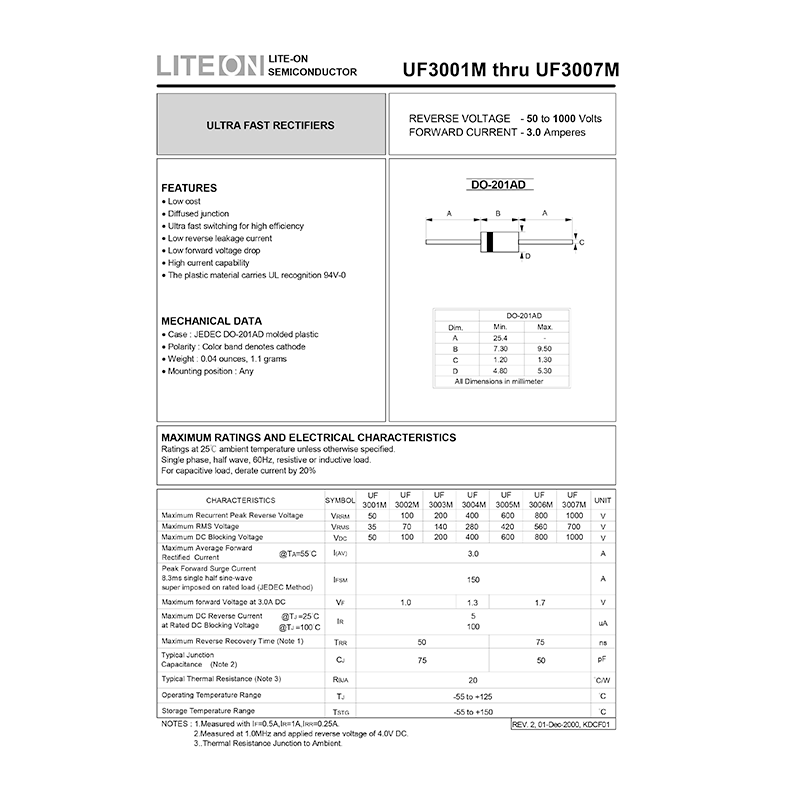

Lite-On Semiconductor UF3006M 800V 3A Ultra Fast Rectifier

FEATURES
– Low cost
– Diffused junction
– Ultra fast switching for high efficiency
– Low reverse leakage current
– Low forward voltage drop
– High current capability
– The plastic material carries UL recognition 94V-0

MECHANICAL DATA
– Case : JEDEC DO-201AD molded plastic
– Polarity : Color band denotes cathode
– Weight : 0.04 ounces, 1.1 grams
– Mounting position : Any

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

RATING AND CHARACTERISTIC CURVES
– Fig.1 – Forward Current Derating Curve
– Fig.2 – Maximum Non-Repetitive Surge Current
– Fig.3 – Typical Junction Capacitance
– Fig.4 – Typical Forward Characteristics
