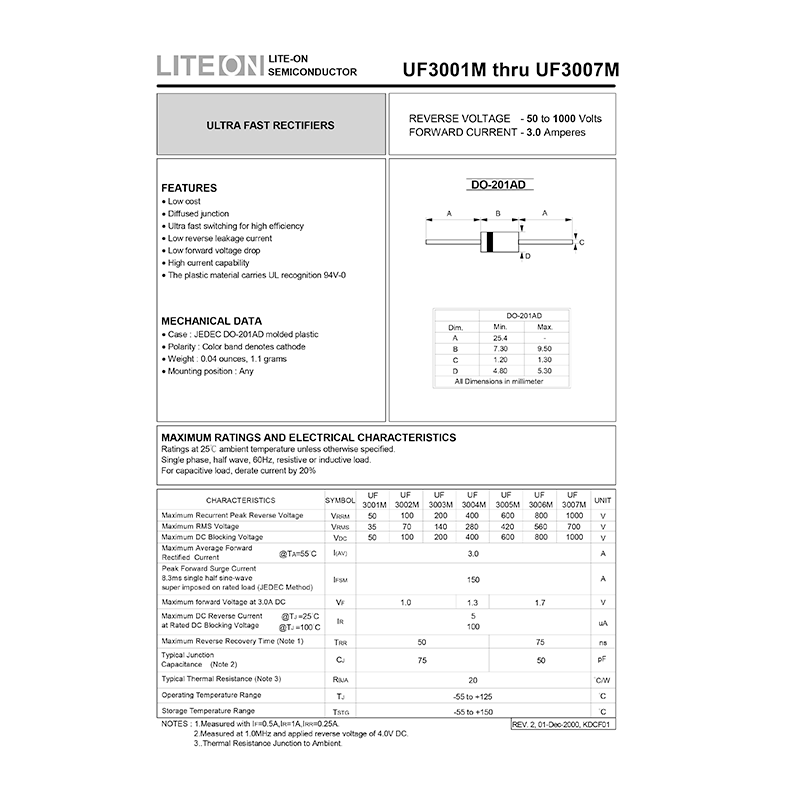

UF3007M Lite-On Semiconductor 1000V 3A Ultra Fast Rectifier Data Sheet
Download PDF datasheet for Lite-On Semiconductor UF3007M 1000V 3A Ultra Fast Rectifier (EN) 2 pages rev.2, 01-Dec-2000, KDCF01 zip
Description
This PDF datasheet is for the Lite-On Semiconductor UF3007M rectifier.
About the Item
Lite-On Semiconductor UF3007M 1000V 3A Ultra Fast Rectifier
FEATURES
– Low cost
– Diffused junction
– Ultra fast switching for high efficiency
– Low reverse leakage current
– Low forward voltage drop
– High current capability
– The plastic material carries UL recognition 94V-0
MECHANICAL DATA
– Case : JEDEC DO-201AD molded plastic
– Polarity : Color band denotes cathode
– Weight : 0.04 ounces, 1.1 grams
– Mounting position : Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATING AND CHARACTERISTIC CURVES
– Fig.1 – Forward Current Derating Curve
– Fig.2 – Maximum Non-Repetitive Surge Current
– Fig.3 – Typical Junction Capacitance
– Fig.4 – Typical Forward Characteristics
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
MECHANICAL DATA
– Case : JEDEC DO-201AD molded plastic
– Polarity : Color band denotes cathode
– Weight : 0.04 ounces, 1.1 grams
– Mounting position : Any
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
– Recurrent Peak Reverse Voltage
– RMS Voltage
– Average Forward Rectified Current
– Peak Forward Surge Current
– Forward Voltage
– DC Reverse Current
– Reverse Recovery Time
– Typical Junction Capacitance
– Typical Thermal Resistance
– Operating Temperature Range
– Storage Temperature Range
RATING AND CHARACTERISTIC CURVES
– Fig.1 – Forward Current Derating Curve
– Fig.2 – Maximum Non-Repetitive Surge Current
– Fig.3 – Typical Junction Capacitance
– Fig.4 – Typical Forward Characteristics
