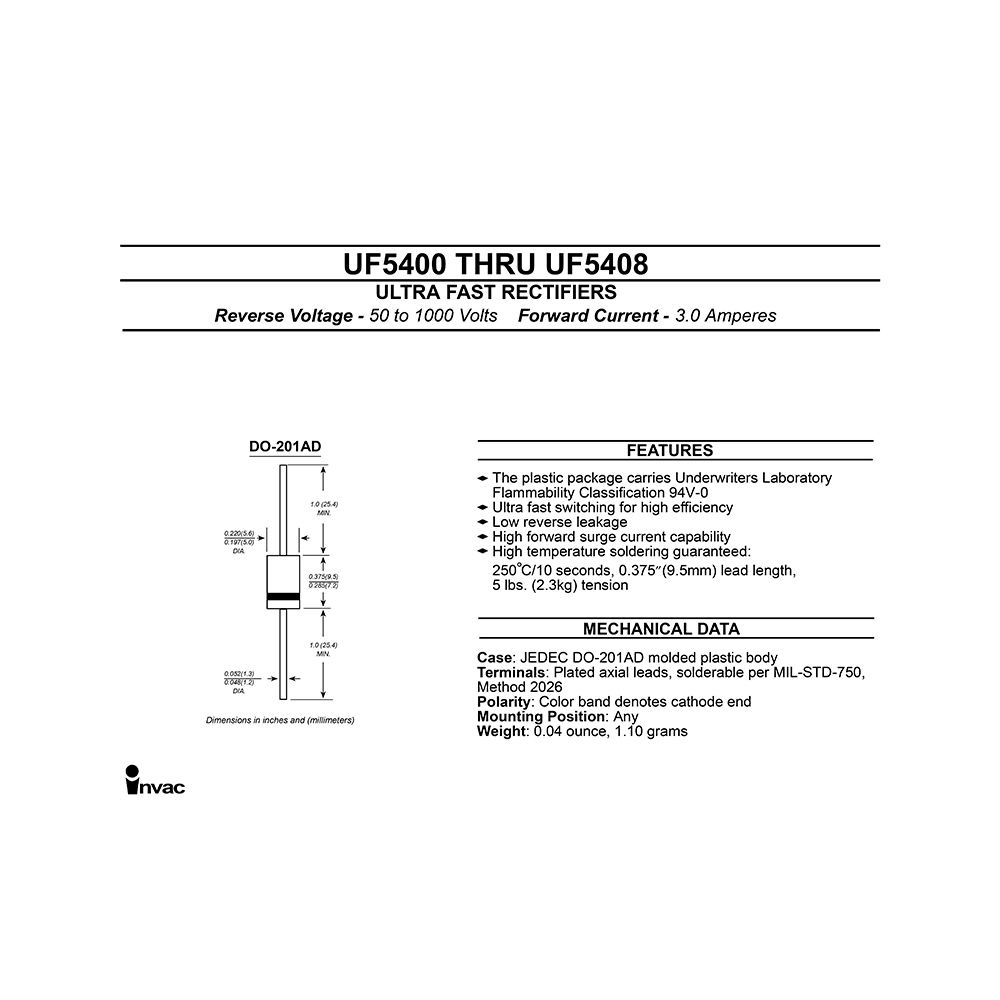

UF5400 Invac 50V 3A Ultra Fast Rectifier Data Sheet
Download PDF datasheet for Invac UF5400 50V 3A Ultra Fast Rectifier (EN) 2 pages zip
Description
This PDF datasheet is for the Invac UF5400 rectifier.
About the Item
Invac UF5400 50V 3A Ultra Fast Rectifier
FEATURES
– The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
– Ultra fast switching for high efficiency
– Low reverse leakage
– High forward surge current capability
– High temperature soldering guaranteed: 250 deg C/10 seconds, 0.375″(9.5mm) lead length, 5 lbs. (2.3kg) tension
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
MECHANICAL DATA
Case: JEDEC DO-201AD molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: 0.04 ounce, 1.10 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
– Maximum repetitive peak reverse voltage
– Maximum RMS voltage
– Maximum DC blocking voltage
– Maximum average forward rectified current
– Peak forward surge current
– Maximum instantaneous forward voltage
– Maximum DC reverse current
– Maximum reverse recovery time
– Typical junction capacitance
– Typical thermal resistance
– Operating junction and storage temperature range
RATINGS AND CHARACTERISTIC CURVES
– Fig. 1 – Forward Current Derating Curve
– Fig. 2 – Maximum Non-Repetitive Peak Forward Surge Current
– Fig. 3 – Typical Instantaneous Forward Characteristics
– Fig. 4 – Typical Reverse Characteristics
– Fig. 5 – Typical Junction Capacitance
– Fig. 6 – Typical Transient Thermal Impedance
Why download the Datasheet?
This datasheet provides all the information from Invac about the UF5400 rectifier, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
How to download the Datasheet?
Download it by clicking the button below
