ULN2003A Allegro MicroSystems Darlington Array Data Sheet

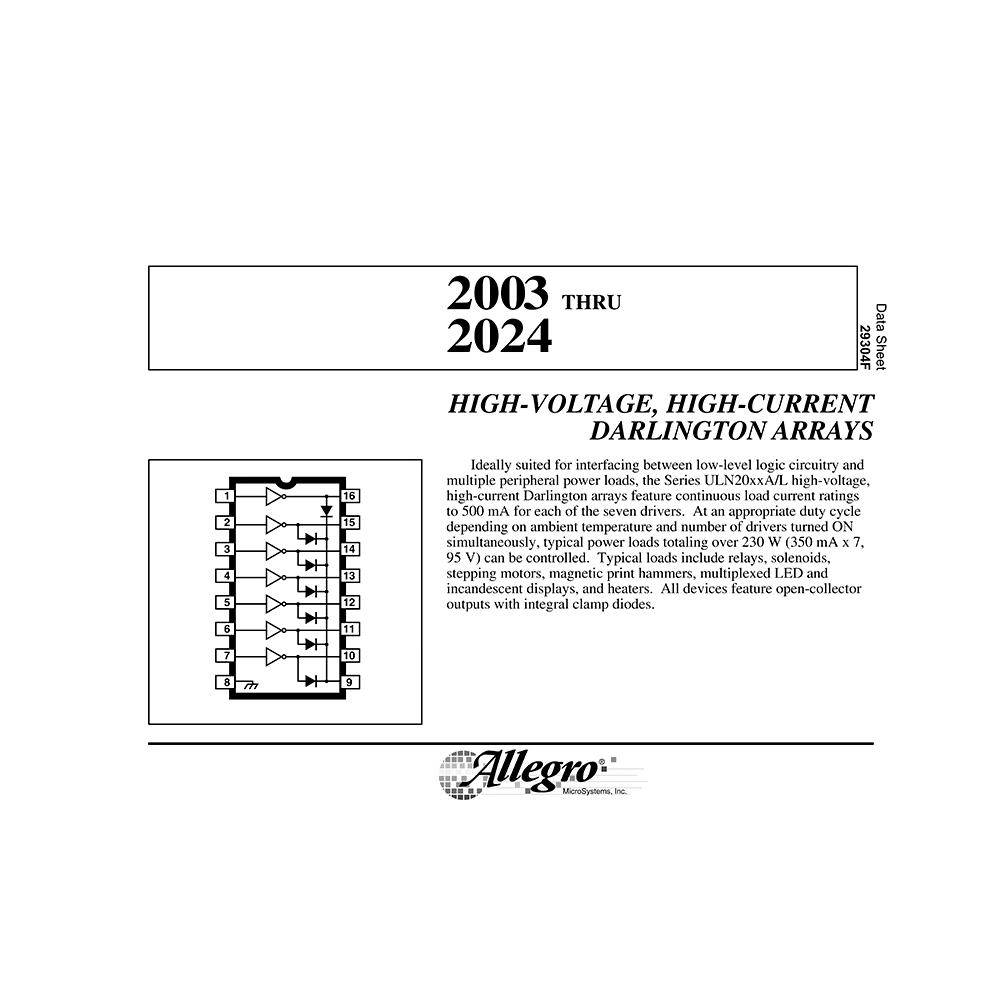

Download PDF datasheet for Allegro MicroSystems ULN2003A High-Voltage High-Current Darlington Array (EN) 10 pages 29304F 2000 zip
Description
This PDF datasheet is for the Allegro ULN2003A Darlington Array.
About the Item
Allegro MicroSystems ULN2003A High-Voltage High-Current Darlington Array
Ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads, the Series ULN20xxA high-voltage, high-current Darlington arrays feature continuous load current ratings to 500 mA for each of the seven drivers. At an appropriate duty cycle depending on ambient temperature and number of drivers turned ON simultaneously, typical power loads totaling over 230 W (350 mA x 7, 95 V) can be controlled. Typical loads include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters. All devices feature open-collector outputs with integral clamp diodes.
The ULN2003A has series input resistors selected for operation directly with 5 V TTL or CMOS. This devices will handle numerous interface needs – particularly those beyond the capabilities of standard logic buffers.
The ULN2003A is the standard Darlington arrays. The outputs are capable of sinking 500 mA and will withstand at least 50 V in the OFF state. Outputs may be paralleled for higher load current capability.
These Darlington arrays are furnished in 16-pin dual in-line plastic packages (suffix “A”). All devices are pinned with outputs opposite inputs to facilitate ease of circuit board layout. All devices are rated for operation over the temperature range of -20 deg C to +85 deg C.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
INTERNAL DIAGRAM
PINOUT
ABSOLUTE MAXIMUM RATINGS
– Output Voltage
– Input Voltage
– Continuous Output Current
– Continuous Input Current
– Power Dissipation
– Operating Temperature Range
– Storage Temperature Range
FEATURES
DEVICE PART NUMBER DESIGNATION
PARTIAL SCHEMATICS
ELECTRICAL CHARACTERISTICS
TEST FIGURES
ALLOWABLE COLLECTOR CURRENT AS A FUNCTION OF DUTY CYCLE
INPUT CURRENT AS A FUNCTION OF INPUT VOLTAGE
SATURATION VOLTAGE AS A FUNCTION OF COLLECTOR CURRENT
COLLECTOR CURRENT AS A FUNCTION OF INPUT CURRENT
