VN0605T Vishay Siliconix N-Channel MOSFET Transistor Data Sheet

Download PDF datasheet for Vishay Siliconix VN0605T N-Channel Enhancement-Mode MOSFET Transistor (EN) 4 pages 70212 S-00528-Rev.F 2000 zip

SKU: VN0605TVISHAYSILICONIXDS2000 Category: Brand:

Description

This PDF datasheet is for the Vishay Siliconix VN0605T transistor.

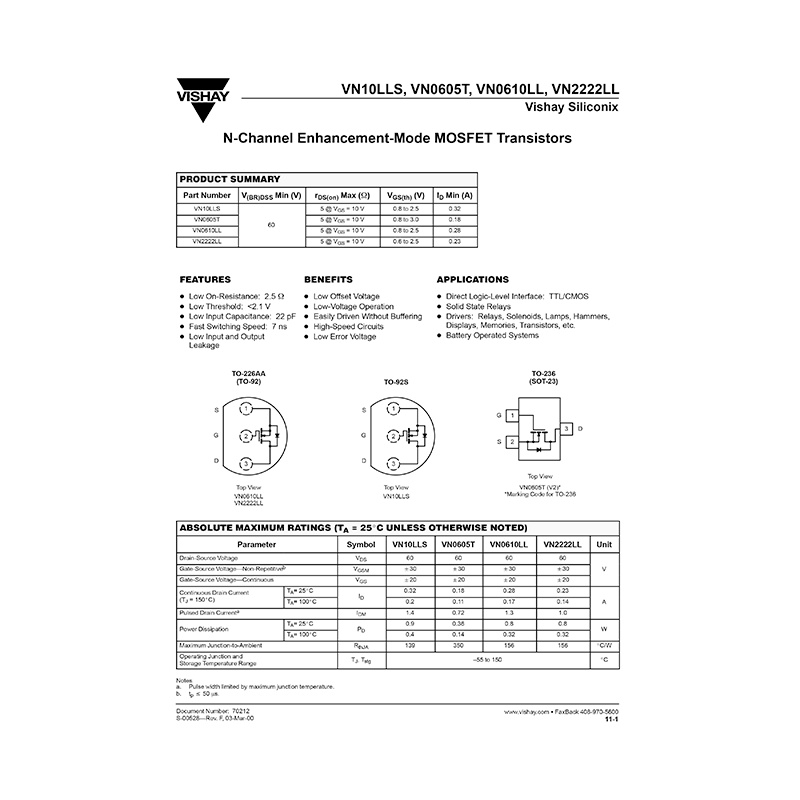

Vishay Siliconix VN0605T N-Channel Enhancement-Mode MOSFET Transistor

FEATURES
– Low On-Resistance: 2.5 Ohms
– Low Threshold: <2.1 V
– Low Input Capacitance: 22 pF
– Fast Switching Speed: 7 ns
– Low Input and Output Leakage

BENEFITS
– Low Offset Voltage
– Low-Voltage Operation
– Easily Driven Without Buffering
– High-Speed Circuits
– Low Error Voltage

APPLICATIONS
– Direct Logic-Level Interface: TTL/CMOS
– Solid State Relays
– Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.
– Battery Operated Systems

(PDF) DATASHEET (ENGLISH)

CONTENTS

VN0605T PINOUT

ABSOLUTE MAXIMUM RATINGS

SPECIFICATIONS
– Static
– Dynamic
– Switching

TYPICAL CHARACTERISTICS
– Output Characteristics
– Transfer Characteristics
– On-Resistance vs. Drain Current
– Capacitance
– Gate Charge
– On-Resistance vs. Junction Temperature
– Source-Drain Diode Forward Voltage
– On-Resistance vs. Gate-to-Source Voltage
– Threshold Voltage
– Normalized Effective Transient Thermal Impedance, Junction-to-Ambient
