W04G Fairchild Bridge Rectifier Data Sheet
Download PDF datasheet for Fairchild Semiconductor W04G 1.5 Ampere 400 Volt Bridge Rectifier (EN) 3 pages Rev.C 2001 zip
Description

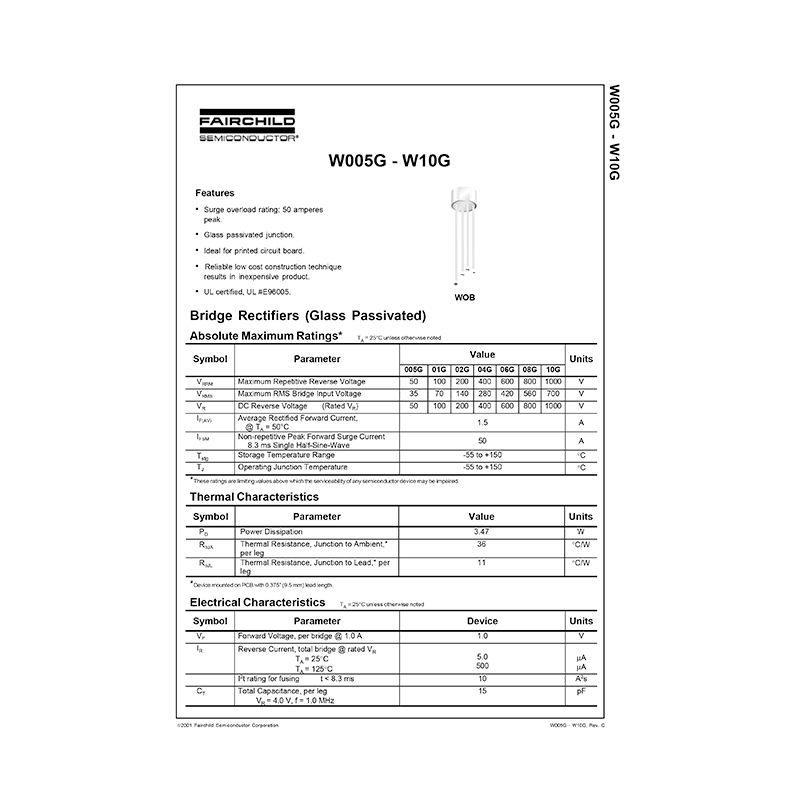

This PDF datasheet is for the Fairchild Semiconductor W04G bridge rectifier.
About the Item
Fairchild Semiconductor W04G 1.5 Ampere 400 Volt Bridge Rectifier
FEATURES
– Surge overload rating: 50 amperes peak.
– Glass passivated junction.
– Ideal for printed circuit board.
– Reliable low cost construction technique results in inexpensive product.
– UL certified, UL #E96005.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
W04G PINOUT
ABSOLUTE MAXIMUM RATINGS
– Maximum Repetitive Reverse Voltage
– Maximum RMS Bridge Input Voltage
– DC Reverse Voltage
– Average Rectified Forward Current
– Non-repetitive Peak Forward Surge Current
– Storage Temperature Range
– Operating Junction Temperature
THERMAL CHARACTERISTICS
– Power Dissipation
– Thermal Resistance
ELECTRICAL CHARACTERISTICS
– Forward Voltage
– Reverse Current
– I2t rating for fusing
– Total Capacitance
TYPICAL CHARACTERISTICS
– Figure 1. Forward Current Derating Curve
– Figure 2. Non-Repetitive Surge Current
– Figure 3. Forward Voltage Characteristics
– Figure 4. Reverse Current vs Reverse Voltage
Why download the Datasheet?
This datasheet provides all the information from Fairchild Semiconductor about the W04G Bridge Rectifier, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.
How to download the Datasheet?
Download it by clicking the button below
