W06G Fairchild Bridge Rectifier Data Sheet

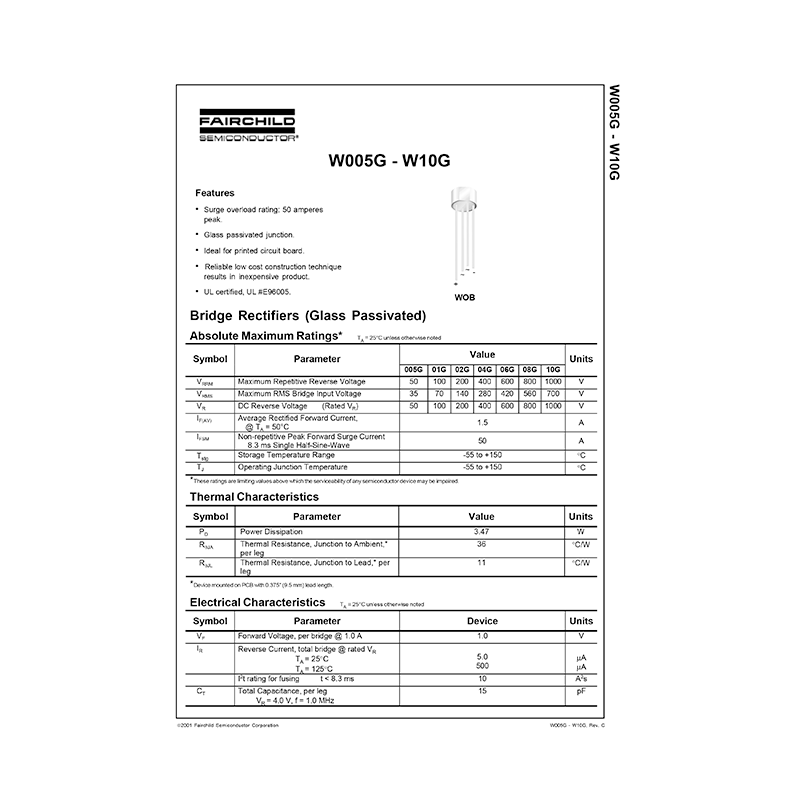

Download PDF datasheet for Fairchild Semiconductor W06G 1.5 Ampere 600 Volt Bridge Rectifier (EN) 3 pages Rev.C 2001 zip
Description
This PDF datasheet is for the Fairchild Semiconductor W06G bridge rectifier.
About the Item
Fairchild Semiconductor W06G 1.5 Ampere 600 Volt Bridge Rectifier
FEATURES
– Surge overload rating: 50 amperes peak.
– Glass passivated junction.
– Ideal for printed circuit board.
– Reliable low cost construction technique results in inexpensive product.
– UL certified, UL #E96005.
(PDF) DATASHEET (ENGLISH)
SUMMARY OF CONTENTS
W06G PINOUT
ABSOLUTE MAXIMUM RATINGS
– Maximum Repetitive Reverse Voltage
– Maximum RMS Bridge Input Voltage
– DC Reverse Voltage
– Average Rectified Forward Current
– Non-repetitive Peak Forward Surge Current
– Storage Temperature Range
– Operating Junction Temperature
THERMAL CHARACTERISTICS
– Power Dissipation
– Thermal Resistance
ELECTRICAL CHARACTERISTICS
– Forward Voltage
– Reverse Current
– I2t rating for fusing
– Total Capacitance
TYPICAL CHARACTERISTICS
– Figure 1. Forward Current Derating Curve
– Figure 2. Non-Repetitive Surge Current
– Figure 3. Forward Voltage Characteristics
– Figure 4. Reverse Current vs Reverse Voltage
