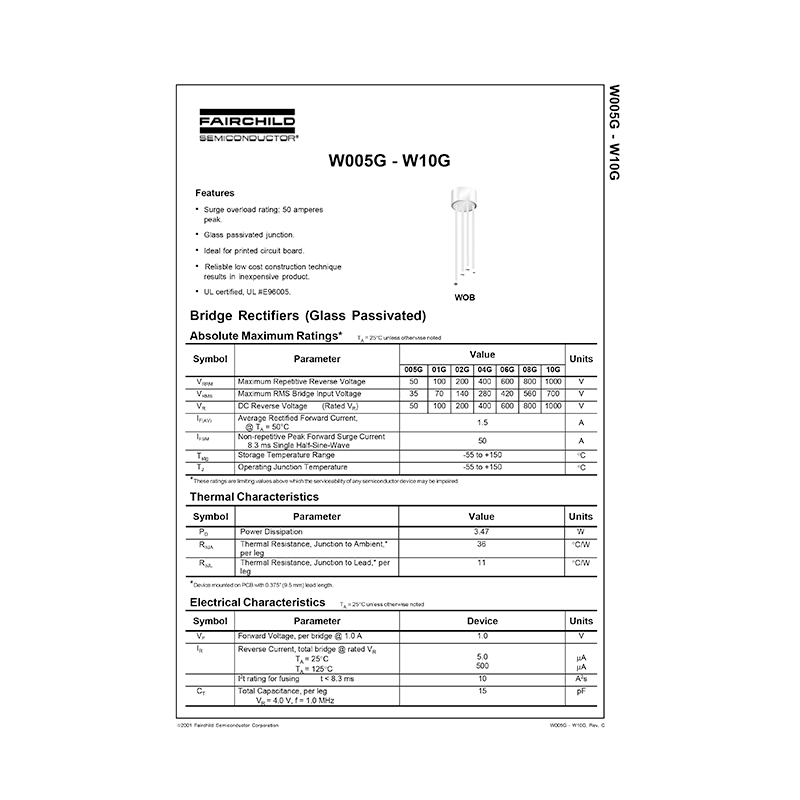

W10G Fairchild Bridge Rectifier Data Sheet

Description

This PDF datasheet is for the Fairchild Semiconductor W10G bridge rectifier.

Fairchild Semiconductor W10G 1.5 Ampere 1000 Volt Bridge Rectifier

FEATURES
– Surge overload rating: 50 amperes peak.
– Glass passivated junction.
– Ideal for printed circuit board.
– Reliable low cost construction technique results in inexpensive product.
– UL certified, UL #E96005.

(PDF) DATASHEET (ENGLISH)

CONTENTS

W10G PINOUT

ABSOLUTE MAXIMUM RATINGS
– Maximum Repetitive Reverse Voltage
– Maximum RMS Bridge Input Voltage
– DC Reverse Voltage
– Average Rectified Forward Current
– Non-repetitive Peak Forward Surge Current
– Storage Temperature Range
– Operating Junction Temperature

THERMAL CHARACTERISTICS
– Power Dissipation
– Thermal Resistance

ELECTRICAL CHARACTERISTICS
– Forward Voltage
– Reverse Current
– I2t rating for fusing
– Total Capacitance

TYPICAL CHARACTERISTICS
– Figure 1. Forward Current Derating Curve
– Figure 2. Non-Repetitive Surge Current
– Figure 3. Forward Voltage Characteristics
– Figure 4. Reverse Current vs Reverse Voltage

Why download the Datasheet?

This datasheet provides all the information from Fairchild Semiconductor about the W10G Bridge Rectifier, as detailed in the table of contents. Reading it completely will address most questions you might have. You can download and save it for offline use, including viewing it on your device or printing it for your convenience if you prefer a paper version.

How to download the Datasheet?

Download it by clicking the button below
