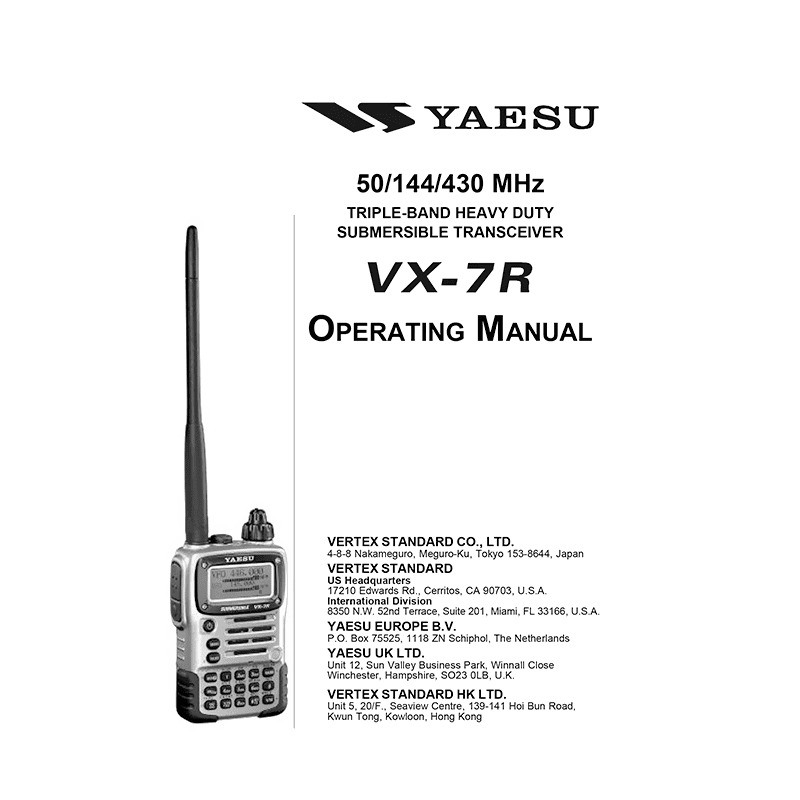

Yaesu VX-7R Triple-Band Transceiver Operating Manual

Description

These PDF operating and service manuals are for the Yaesu VX-7R Tri-Band 5W FM Transceiver.

About the Item

Yaesu VX-7R / VX-7RB (Black) 50/144/430 MHz Triple-Band Ultra-Rugged Submersible Handheld 5 Watt FM Transceiver

The VX-7R is a miniature 3-band FM transceiver with extensive receive frequency coverage, providing leading-edge features for VHF and UHF twoway amateur communications, along with unmatched monitoring capability.
The VX-7R’s small size allows you to take it anywhere – hiking, skiing, or while walking around town – and its operating flexibility brings the user many avenues of operating enjoyment. Besides 50, 144, and 430 MHz transceive operation, the VX-7R provides 222 MHz QRP (0.3 Watts) transceive operation, receive coverage of the AM (MF) and FM broadcast bands, HF Shortwave Bands up to 16 MHz, VHF and UHF TV bands, the VHF AM aircraft band, and a wide range of commercial and public safety frequencies! Dual In-band Receive (V/V and U/U) lets you keep track of two active frequencies. And the optional Barometer pressure Sensor Unit provides readout of barometric pressure and altitude while mountain climbing or hiking, and it also generates a Weather Forecast based on measured data.
The transmitter section provides 5 Watts of clean power output on the FM operation on the 50 MHz, 144 MHz, and 430 MHz bands with the supplied FNB-80LI Battery Pack, and 0.3 Watts output on 222 MHz, and 1 Watt of carrier output for AM operation on 50 MHz. Both CTCSS and DCS tone signaling formats are built into the VX-7R, in addition to Yaesu’s exclusive ARTSTM-(Auto-Range Transponder System), which “beeps” the user when you move out of communications range with another ARTSTM-equipped station.

We encourage you to read this manual thoroughly, so as to learn about the many exciting features of your exciting new Yaesu hand-held transceiver!

(PDF) OPERATING MANUAL in English (EN) language.

SUMMARY OF CONTENTS

– INTRODUCTION
– CONTROLS & CONNECTIONS
– DISPLAY ICONS & INDICATORS
– KEYPAD FUNCTION
– ACCESSORIES & OPTIONS
– INSTALLATION OF ACCESSORIES: Antenna Installation, How to Install the Quick Draw Belt Clip, Installation of FNB-80LI Battery Pack, Installation of FBA-23 (option), Alkaline Battery Case, Battery Life Information, AC Operation Using NC-72.
– INTERFACE OF PACKET TNCS
– OPERATION: Switching Power On and Off, Adjusting the Volume Level, Squelch Adjustment, Selecting the Operating Band, Selecting the Frequency Band, Frequency Navigation, Audio Muting, BAND Link, Transmission, Changing the Transmitter Power Level, VOX Operation, AM Broadcast Reception, AM Aircraft Reception, FM Broadcast/TV Audio Reception, Weather Broadcast Reception, Keyboard Locking, Keypad/LCD Illumination, Disabling the Keypad Beeper.
– ADVANCED OPERATION: Setting the Frequency Display Image Size, Changing the Channel Steps, Changing the Operating Mode, Repeater Operation, CTCSS Operation, DCS Operation, Tone Search Scanning, CTCSS/DCS Bell Operation, Split Tone Operation, Tone Calling (1750 Hz), ARTS (Automatic Range Transponder System), DTMF Operation, Emergency Channel Operation, ATT (Front End Attenuator), Receive Battery Saver Setup, TX Battery Saver, Disabling the “STROBE”, Automatic Power-Off (APO) Feature, Transmitter Time-Out Timer (TOT), Busy Channel Lock-Out (BCLO), MIC Monitor, Changing the TX Deviation Level.
– MEMORY MODE. Regular Memory Operation: Memory Storage, Storing Independent Transmit Frequencies, (“Odd Split”), Memory Recall, HOME Channel Memory, Labeling Memories, Memory Offset Tuning, Masking Memories, Memory Group Operation, Moving Memory Data to the VFO, Memory Only Mode; Hyper Memory Operation One-Touch Memory Operation; Sort-wave Broadcast Station Memory Channels; VHF Marine Memory Channels.
– SCANNING. VFO Scanning; Memory Scanning: Temporary Memory Skip, How to Skip (Omit) a Channel, During Memory Scan Operation, Preferential Memory Scan; Programmable (Band Limit) Memory Scan (PMS); “Priority Channel” Scanning (Dual Watch); Automatic Lamp Illumination on Scan Stop; Band Edge Beeper; Spectrum Analyzer Operation; Smart Search Operation; Channel Counter Operation; Internet Connection Feature.
– SENSOR MODE. Sensor Mode Option: Clock Set, Selecting the Wave Form Display, Selecting the Unit of Temperature Display, Selecting the Unit of Atmospheric Pressure Meter (Barometer), Correcting the Atmospheric Pressure Meter (Barometer Offset), Selecting the Unit of Altimeter, Correcting the Altimeter Setting (Altimeter Offset).
– TIMER OPERATION
– DISPLAY CUSTOMIZATION: Icon Mode, Icon Selection, Icon Editor, Power-Off Display Mode, S-and TX Power Meter Symbols, Font Editor, Display Contrast, Display Dimmer, STROBE Customization
– RESET PROCEDURES
– CLONING
– SET MODE
– INSTALLATION OF THE SU-1
– SPECIFICATIONS
– APPENDIX

(PDF) VX-7R Circuit Description

(7 pages)
CONTENTS:

– Receiver Signal Flow
(1) Triplexer
(2) 145-MHz Band and 76-300MHz Reception
(3) 435-MHz Band and 222-540MHz Reception
(4) 50-MHz Band and 30-76 MHz Reception
(5) 0.5 – 30 MHz Reception
(6) 540 – 999 MHz Reception
(7) 47.25 MHz First Intermediate Frequency
(8) Squelch Control

– Transmitter Signal Flow
(1) 145-MHz Band Transmit/Receive Switching
(2) Modulation
(3) 145-MHz Band Transmission
(4) 435-MHz Band Transmission
(5) 50-MHz Band Transmission

– PLL Frequency Synthesizer

(PDF) Yaesu VX-7R Quick Set Guide

(PDF) Yaesu VX-7R Technical Supplement (Service Manual)

(EH009M90B 64 pages 2003)

This manual provides the technical information necessary for servicing the VX-7R 50/144/430 MHzTriple-Band Heavy Duty Submersible Transceiver.

CONTENTS:
– Specification
– Exploded View & Miscellaneous Parts
– Block Diagram
– Interconnection Diagram
– Circuit Description
– Alignment
– Board Unit (Schematics, Layouts & Parts): RF Unit, AF Unit, CNTL Unit, VCO Unit

Why Download the Manuals?

These operating and service manuals provide all the information from Vertex Standard Yaesu about the VX-7R transceiver, as detailed in the tables of contents. Reading them completely will address most questions you might have. You can download and save them for offline use, including viewing them on your device or printing them for your convenience if you prefer a paper version.

How to Download the Manuals?

Download it by clicking the button below
